Ultrasonic homogeniser

DOWNLOAD "SAMPLE PREPARATION" LINE CATALOGUE FROM HERE

Download our complete catalogues

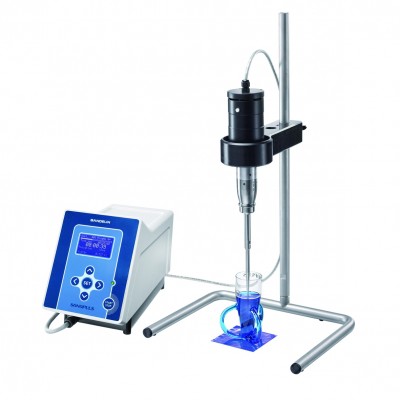

SONOPULS HD 4100

Suitable for homogenising, de-agglomerating, emulsifying, suspending, accelerating chemical reactions or the destruction of cells, bacteria, fungi or spores. The SONOPLUS 4000 series devices are characterised by optimised process times and rapidly available reproductive results.

LC display for amplitude, pulse level, time and power

Pulse mode, AMPLICHRON® circuit

Data memory

Batch/sequencing mode

Temperature display and measurement

Remote control via RS 232 PC

Interference suppression

Also available as a medical product according to the guidelines for in-vitro diagnostics 98/79 / EG.

For volumes from 2 to 200 ml. Ready-to-use set for volumes from 3 to 50 ml consisting of:

GM 4200 HF generator

UW 100 ultrasound converter

SH 100 G standard connection

Titanium probe TS 103, diameter 3 mm

Other Titanium probes with diameters of 2 mm, 4.5 mm, 6 mm, 9 mm and 13 mm are available on request.

HF generator

Dimensions (W x D x H): GM 4200

150 x 335 x 220 mm

UW 100 converter

Dimensions (diam. x W): diam. 70 x 150 mm

Ultrasonic nominal power: max. 100 W

Max. test volume: 50 ml

Pulsation: ON cycles: 0.2 ... 600 s OFF cycles: 0.3 ... 600 s

We produce custom-designed equipment request a free quote - CONTACT US -
