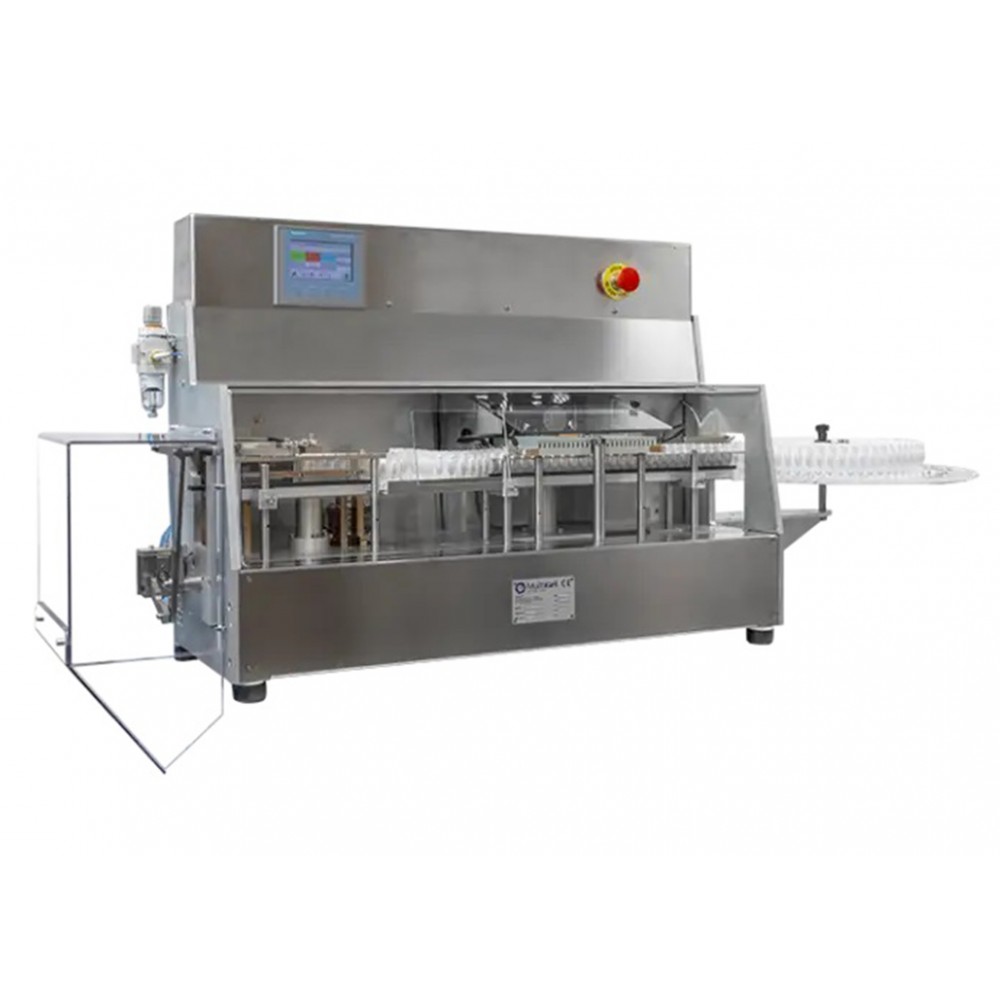

Suppository/ovule sealing machine 3000-6000 pieces/hour

€ 43,540
Automatic sealing machine with an hourly output of 6000 single doses, suppositories or ova.
Sealing is performed by impulse and pressure heating with temperature stabilisation of the sealing jaws by means of two high-flow fans. The sealing temperature is adjustable. The machine trims the upper edge of the alveoli and imprints the coding by means of an embossing clicker. The cut is programmable in strips from 1 to 10 single doses, suppositories or ovules. All production parameters are fully programmable via the touch screen and all functions are designed in accordance with GMP standards.
Changing production from single-dose to suppositories is quick and easy.
Technical data sheet
POWER SUPPLY V 110/230 Single Phase
POWER CONSUMPTION KW 2.7
DIMENSIONS LXWXH cm 150x80x60
WEIGHT kg 185
PRODUCTION H 3000-6000 pcs/H
We produce custom-designed equipment request a free quote - CONTACT US -

Quantity

100% secure payments
Add to wishlist Add to compare
Description
- Container height adjustment.
- Complete cycle of surface heat impulse sealing, stabilisation and cooling for groups of 13 containers.
- Temperature stabilisation of the sealing unit with two high-flow fans at the rear of the machine.
- Sealing temperature regulation.
- Trimming of sealed top of containers and rear discharge of trimmed material.
- Adjustable strip cutting of up to 10 pockets.
- Coding of containers (optional).
Machine size 115x60x80 (h) cm.
Dimension with packaging 145x55x105 (h) cm.
Net weight 85 kg.
Gross weight 148 kg.
Consumption 1 Kw
FM99100
