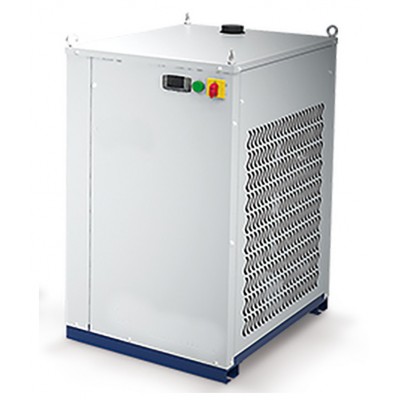

Air liquid chiller 1.8 - 4.4 kW

€ 3,925
Developed starting from the specific features of the TAEevo predecessor, the new TAEevo TECH MINI range has been significantly enhanced thanks to important technical updates: new finned coil evaporator, reinforced structure and new electronic control functions. The whole is a perfect balance between superior reliability, minimum overall dimensions and high energy efficiency. Perfect, therefore, for small industrial processes.
Highest level of reliability
MINI units guarantee class-leading performance with maximum component reliability. The innovative configuration of the finned coil evaporator allows the unit to operate reliably even in particularly demanding applications. Thanks to the non-ferrous hydraulic circuit, the MINI chillers are also able to work with process fluids that are aggressive towards carbon steel, maintaining maximum cleanliness and quality.
Can be installed anywhere
Thanks to their compactness, the MINI units can be easily positioned even under a workbench. The sturdy structure equipped with eyebolts allows the unit to be lifted using straps with hooks. Thanks to the bi - frequency design, the M03 model is ready for 50Hz and 60Hz applications.
Easy maintenance
The organic layout of the components, the simplicity of the refrigeration circuit and the numbering of the electrical system cables simplify the verification and maintenance operations, which can also be performed with the unit running. Disassembly of the condenser air filters for periodic cleaning operations is facilitated thanks to a simple interlocking fixing system. The mod. MINI 08-10 are equipped with a steady green light in normal operating conditions and a red light in alarm conditions.
Extended operational limits
The wide operating limits allow the MINI units to function even in the most extreme conditions. The maximum water inlet and minimum outlet temperatures are +35 ° C and 0 ° C respectively. TAEevo TECH MINI can work with ambient temperatures up to 45 ° C.
This type of article can be 100% customized to your needs;
We produce custom-designed equipment request a free quote - CONTACT US -

Base unit / Cooling capacity

Quantity

Description
Benefits:
Innovative finned coil evaporator immersed in the hydraulic tank, characterized by low pressure drops and reduced sensitivity to fouling;
R134a (mod. M03) and R410A (mod. M05-10) refrigerants which, thanks to the best heat exchange properties, allow excellent performance;
Reinforced structure movable by lifting eyebolts;
Standard NON FERROUS atmospheric hydraulic circuit;
Atmospheric hydraulic storage tank in polyethylene equipped with visual level indicator, filling cap, drain connections and overflow;
Hydraulic safety by-pass;
Advanced XR60CX microprocessor control standard on all models;
Clean general alarm contact and digital input for remote ON / OFF;
Ease of installation, use and maintenance;
SEPR HT Tier2 compliant.
Options
Fine temperature regulation version (mod. M08-M10): the outlet process water temperature is regulated with precision (hysteresis ± 0.5 ° C) by means of a hot gas injection solenoid valve, controlled with PID logic;
Version for low water outlet temperature Tw out min = -5 ° C;
P5 pump (mod. M08-M10): non-ferrous peripheral pump with useful head of about 5 barg;
Water level sensor (mod. M08-M10);
Industrial multipolar connector (mod. M08-M10);
Hydraulic sectioning system (mod. M08-M10);
Stainless steel carpentry.
Nominal cooling capacity 1.8 - 4.4 kW; nominal operating conditions: ambient temperature +25 ° C and evaporator IN / OUT water temperature + 20 / + 15 ° C (UNI EN 14511: 2018).
The basic unit includes: polyethylene storage tank, non ferrous peripheral P3 pump, non ferrous hydraulic circuit.
Kits sold separately;
Water filter kit;
External automatic water by-pass kit;
Anti-vibration kit;
Dynamic set point kit;
Wheel kit.
MTA0022
