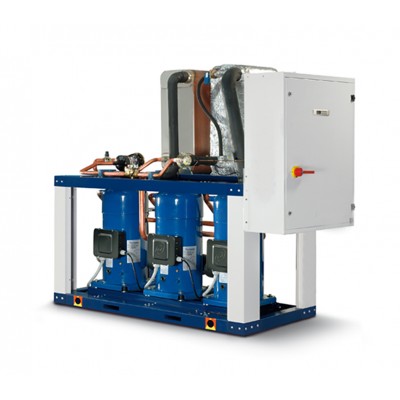

Liquid chiller and water heat pumps – Refrigerator 289-752 kW Thermal 263-686 kW

€ 44,800
Nominal cooling capacity 289 - 752 kW. Nominal heat output 263 - 686 kW.
It is a series of liquid chillers and water heat pumps with reverse cycle on the water side designed for outdoor installation with R410A refrigerant gas. These water-cooled liquid chillers respond optimally to the complex requirements of use in the field of industrial process cooling. The multiscroll logic, adopted on the entire series, allows to maximize the performance indices at partial loads, which represent the main share over the operating life of a machine dedicated to air conditioning. Particular attention was paid to the overall dimensions of these units which must be transported inside technical rooms that are often difficult to access.
Benefits
Seasonal energy efficiency compliant with the requirements of Directive 2009/125 / EC ErP;
High levels of energy efficiency, especially at partial loads;
The extremely compact dimensions allow it to pass even through the most common technical compartments;
Unloading function for unit operation even in extreme conditions;
Sturdy structure, with components of leading international brands, the result of MTA's industrial culture;
Flexibility of use, suitable for use with both tower or well water;
Further energy efficiency thanks to the options with total and partial heat recovery;
Ease of installation and complete accessibility to all components;
Operation with water temperature at the evaporator outlet between 0 ° C and 25 ° C;
Wide range of ambient temperature (from -10 ° C to +45 ° C);
Easy management thanks to a simple microprocessor parametric control with graphic display.
This type of article can be 100% customized to your needs;
We produce custom-designed equipment request a free quote - CONTACT US -

Cooling capacity / Heating capacity (kW)

Heat pump

Capacitors

Quantity

100% secure payments
Add to wishlist Add to compare
Description
Standard features
From 3 to 6 hermetic scroll compressors, in parallel on single or double refrigerant circuit units;
Heating resistance of the compressor crankcase and phase monitor;
Stainless steel plate evaporators and condensers with copper brazing;
Electronic expansion valve;
Testing and tests carried out in the factory on all models;
Filling of anti-freezing oil and refrigerating fluid carried out in the factory;
Degree of protection of the electrical panel IP54.
Options
Soundproofing paneling of the compressor compartment;
Water side reversible heat pump configuration;
Partial heat recovery - desuperheater (20% heat recovery);
Total heat recovery (100% heat recovery);
Anti-freeze protection resistors for the exchangers.
Cooling capacity kw from 289 to 752; Nominal operating conditions: evaporator IN / OUT water temperature + 20 / + 15 ° C, condenser IN / OUT water temperature + 30 / + 35 ° C (UNI EN 14511: 2018).
Thermal capacity from 263 to 686 kw; Nominal operating conditions: evaporator IN / OUT water temperature + 12 / + 7 ° C, condenser IN / OUT water temperature + 40 / + 45 ° C (UNI EN 14511: 2018).
Kits sold separately
Modulating valves for condensation control;
Victaulic hydraulic connections;
Antivibration supports;
Soft start starters;
Remote display;
RS485 Modbus interface for connection to supervision systems;
xWEB300D EVO for monitoring, control and archiving of data, based on "WEB server" technology.
